FM50
The First Choice for Defence
FM50
The First Choice for Defence
The FM50 is part of the latest generation of Avon Protection's CBRN full face mask, specifically designed to meet the latest NATO forces military mask requirements.
The FM50 has been developed to meet the latest NATO requirements and counter the multiple CBRN threats encountered in modern warfare, anti-terrorist and peace-keeping operations.
The twin filter conformal system sits close against the face, providing the wearer with high protection and very low breathing resistance. Twin filters also make it a much more comfortable mask to wear and also allows greater ease of weapon deployment.
Outstanding vision is provided with the introduction of Avon Protection's new wide panoramic flexible visor, which is the result of our new bonding technology that incorporates both visual clarity and integral durability.
NOW AVAILABLE FOR CIVILIAN PURCHASE THROUGH OUR ONLINE STORE*
*Available only in the United States. Restrictions may apply.
Suitable for:
- First Responders
- Military
The FM50 has been developed to meet the latest NATO requirements and counter the multiple CBRN threats encountered in modern warfare, anti-terrorist and peace-keeping operations.
The twin filter conformal system sits close against the face, providing the wearer with high protection and very low breathing resistance. Twin filters also make it a much more comfortable mask to wear and also allows greater ease of weapon deployment.
Outstanding vision is provided with the introduction of Avon Protection's new wide panoramic flexible visor, which is the result of our new bonding technology that incorporates both visual clarity and integral durability.
NOW AVAILABLE FOR CIVILIAN PURCHASE THROUGH OUR ONLINE STORE*
*Available only in the United States. Restrictions may apply.
Features and Benefits

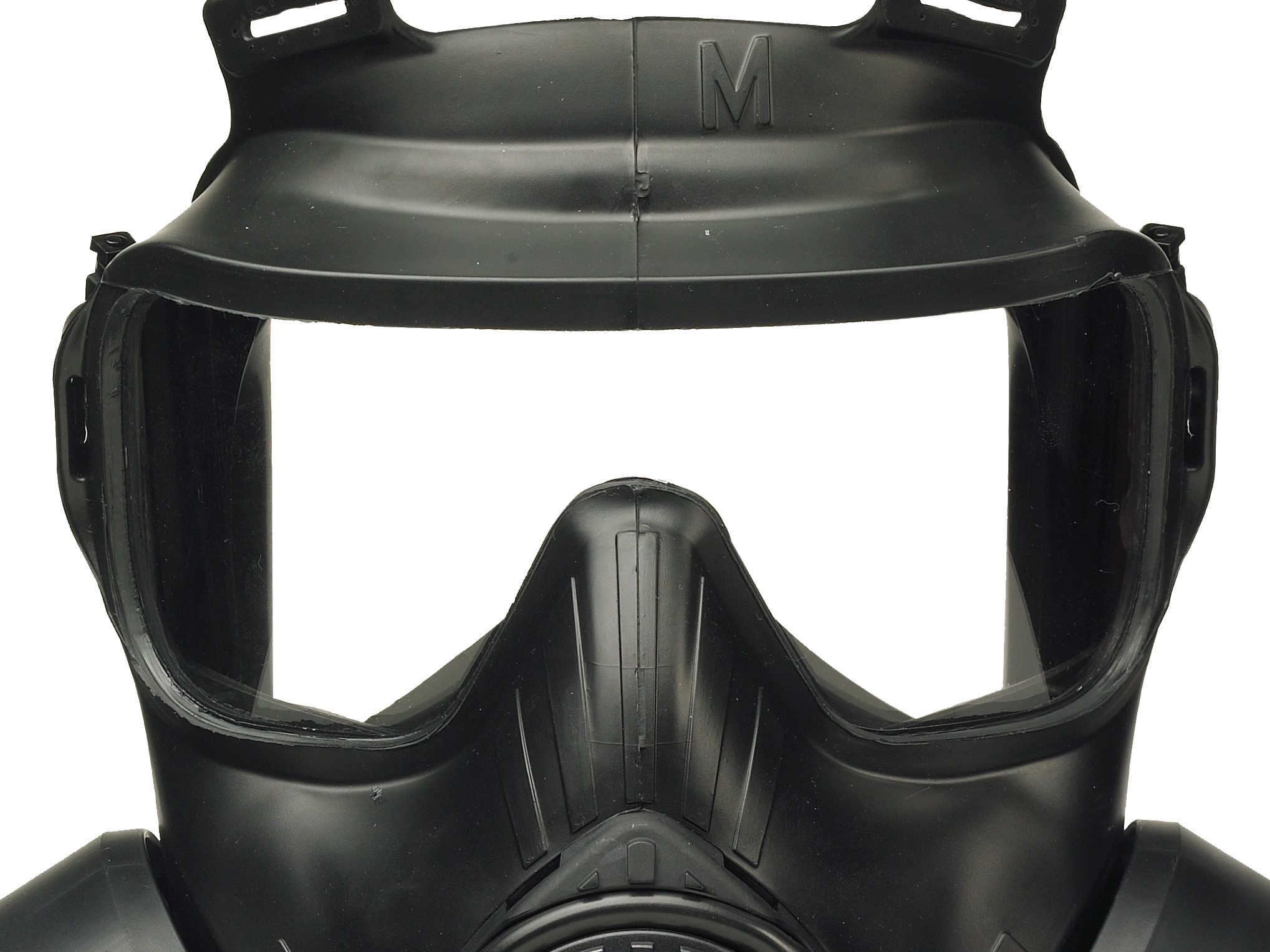

Field of View
- Panoramic single lens visor
- Optically correct visor
- Scratch Resistant

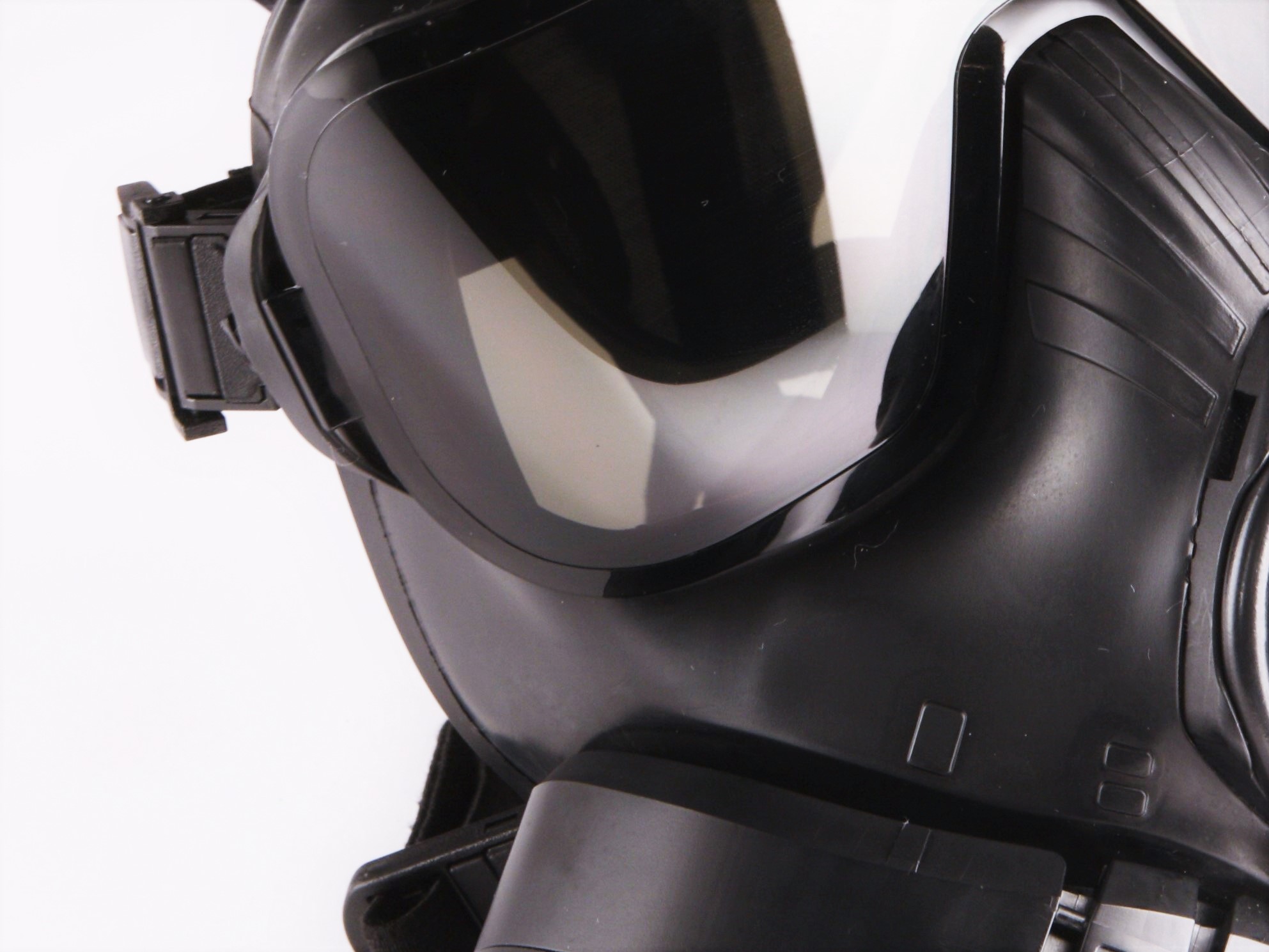

Comfort
- 3 face piece sizes for improved fit
- Chlorobutyl rubber silicone blend mask
- High flow fail safe drinking device

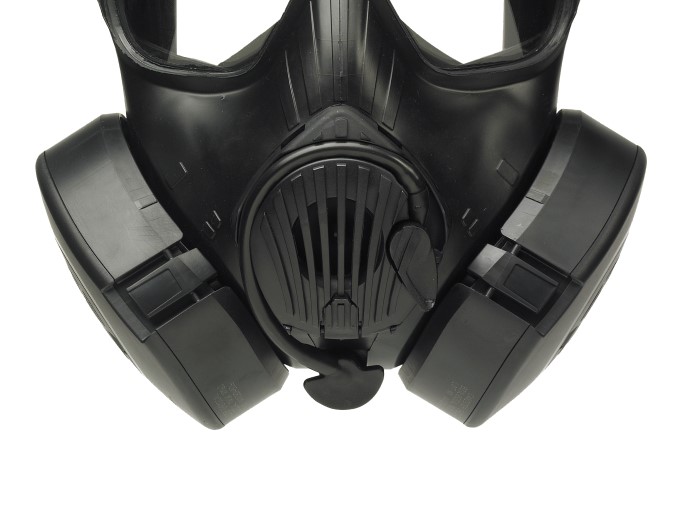

Air Management
- Low inhalation resistance & excellent de-mist properties
- Heat build-up minimized
- Low-re-breathed carbon dioxide

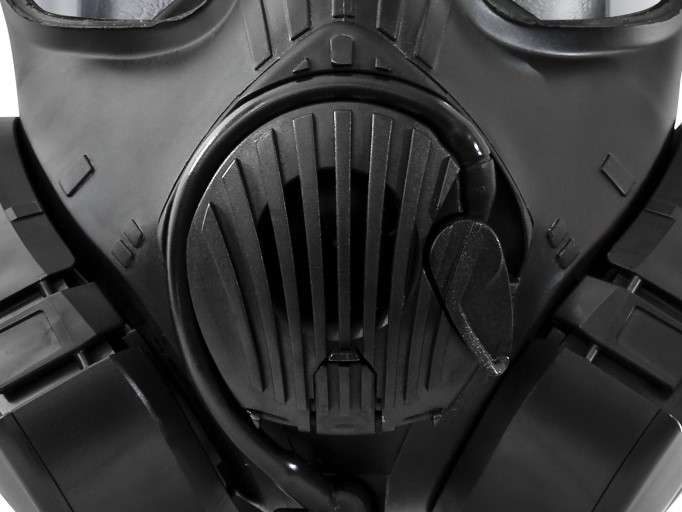

Communications
- Front mounted exhale valve allows clear direct communication

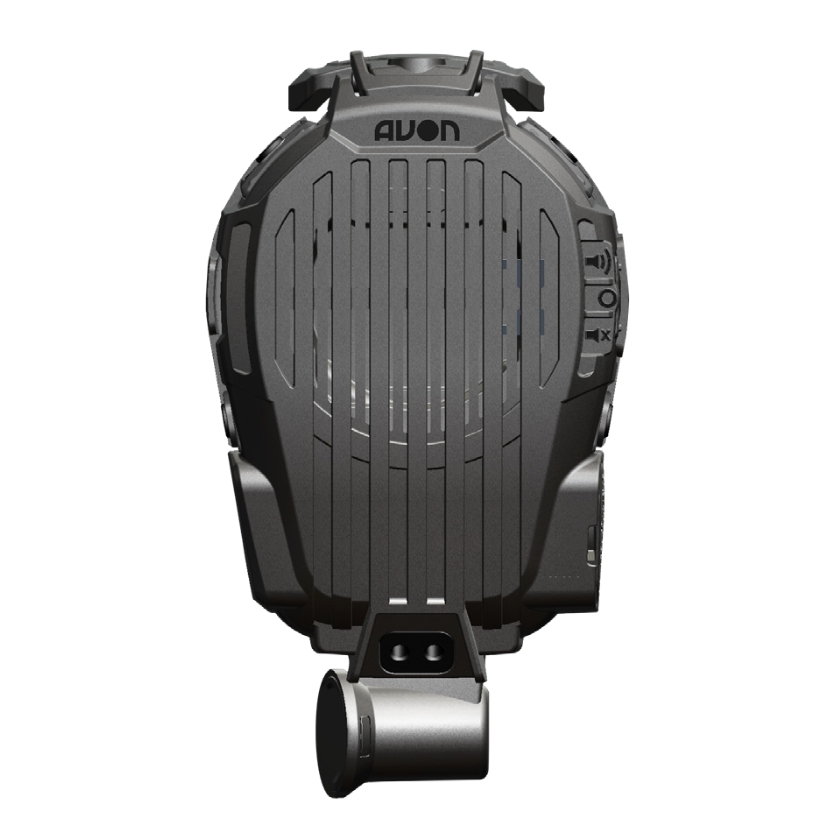

- Electronic Communication Port (ECP) for optional voice projection
- Radio communications available through ECP
Technical Specifications
| CBRN Agent Resistance | FM50 Performance | |
|---|---|---|
|
Mustard (H) |
Greater than 36 hrs |
|
|
Sarin (GB) |
||
|
Soman (GD) |
||
|
VX |
||
|
Laboratory Protection Factory Performance (Sodium Chloride) |
Greater than 10,000 |
|
| Weight | ||
|
FM50 Mast (including twin filters) |
840 grams |
|
| Breathing Performance | ||
|
Re-breathed CO2 |
0.80% |
|
|
Inhalation Resistance at: |
Mask Only |
Mask & Filters |
|
30 L/Min |
2 mm WG |
10 mm WG |
|
95 L/Min |
8 mm WG |
30 mm WG |
|
160L/Min |
12 mm WG |
64 mm WG |
|
Exhalation resistance at: |
|
|
|
85 L/Min |
7 mm WG |
|
|
160 L/Min |
12 mm WG |
|
| Field of View | ||
|
Visual Field Score - NIOSH CBRN APR Standard |
96 |
|
The FM50 has been designed to be compliant with the latest US and NATO military CBRN requirements
Resources and Downloads
Accessory Data Sheets
Filter Data Sheets
Product Literature
Technical Documents
Accessories

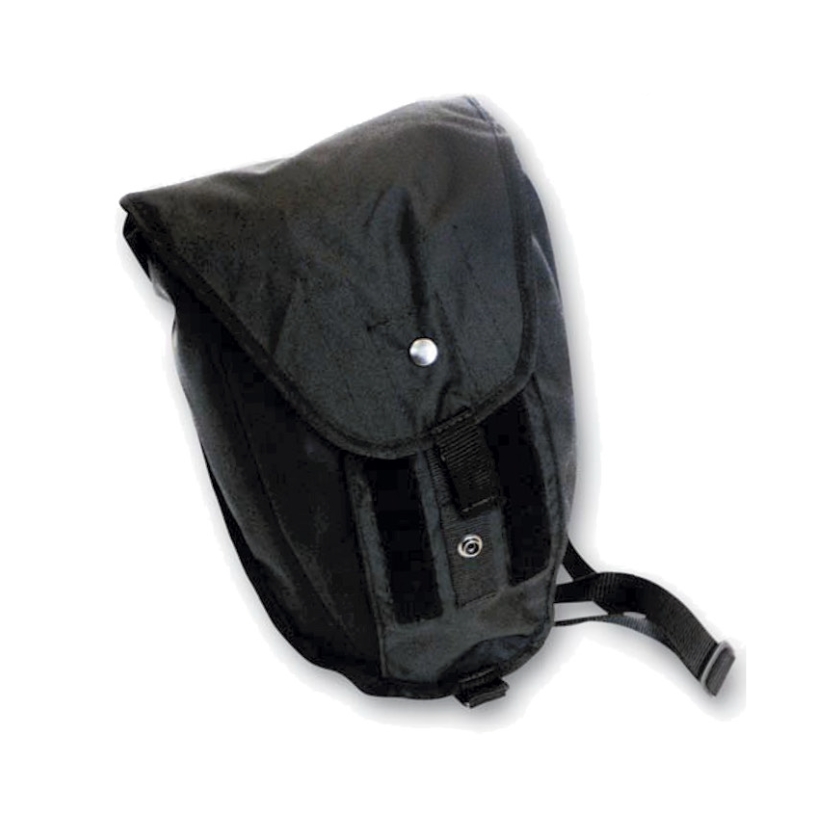

Complimentary to the Mask Carrier and provides additional storage of antidotes and first aid equipment. Designed with MOLLE attachment, it offers multiple mounting options and flexible storage options.
