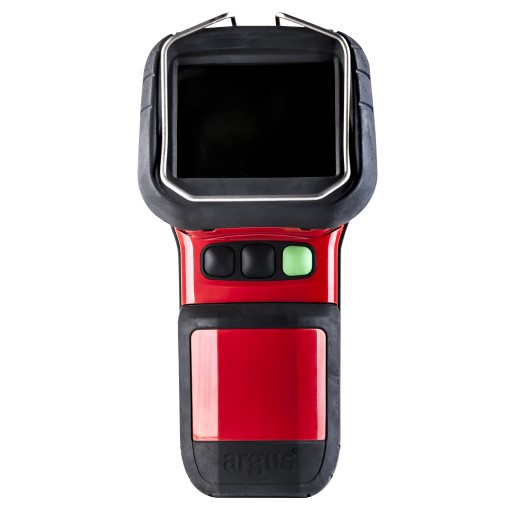

Mi-TIC S

Best-in-Class Feature Set Firefighter Thermal Imaging Camera

The Mi-TIC S is the smallest and lightest, high-dynamic range, large screen thermal imager for firefighters certified to comply with NFPA 1801:2021.

The camera provides a crystal clear image with a superb dynamic range up to 2000°F (1100°C). You can clearly view extremely high temperatures without whiteout and at the same time still see very low temperature objects, which is ideal for casualty searches.

The Mi-TIC S has an enhanced feature set that includes a laser pointer, electronic compass, and Heat Seeker (hottest spot identifier) and Cold Seeker (coldest spot identifier) technology.

Applications include: Ventilation location selection, search and rescue (fire and non-fire), seat of fire localization, overhaul, size-up, interior structural firefighting, hot spot localization, cold spot localization, directional awareness.

BUY NOW

Suitable for:

  • Fire
  • First Responders

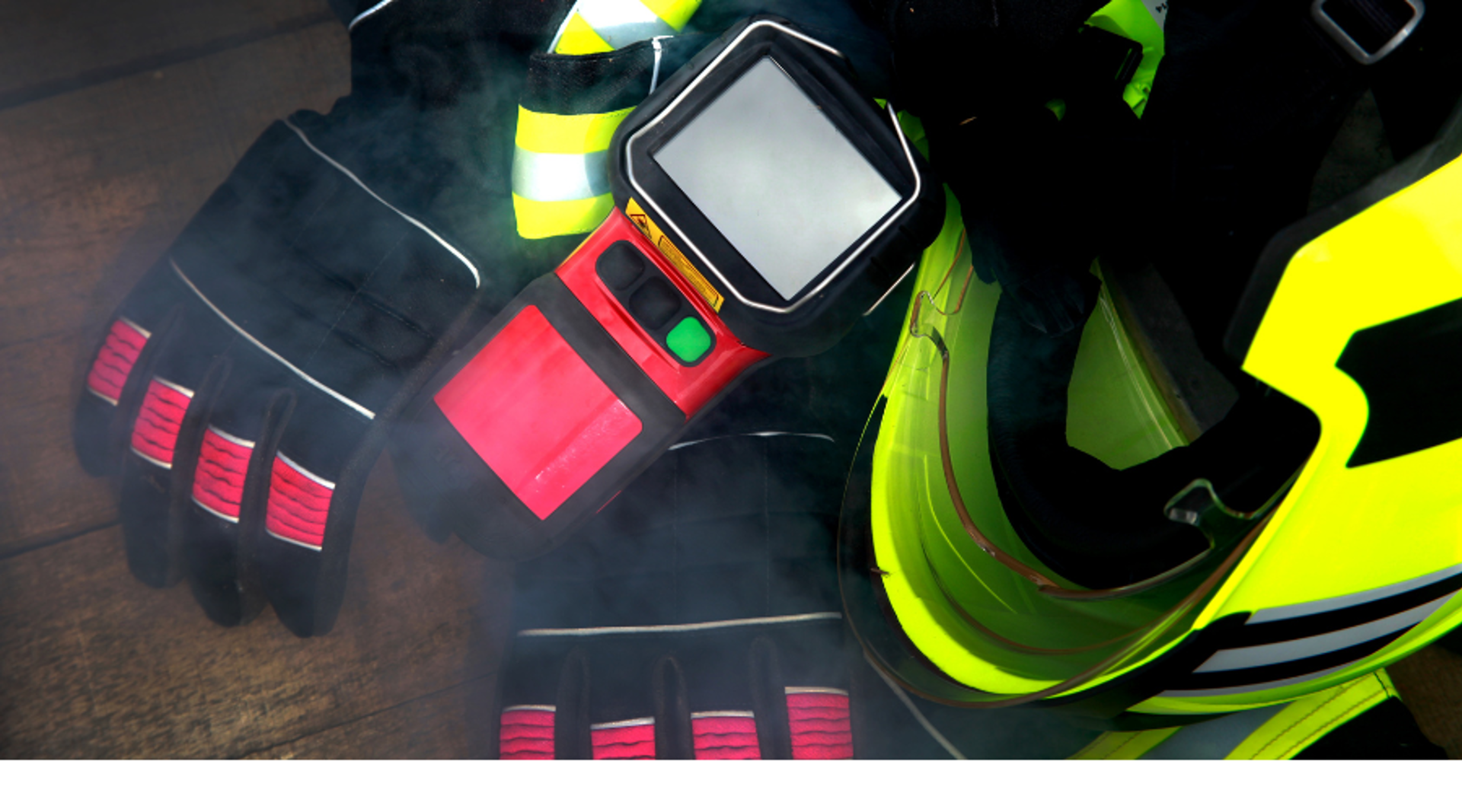

Gallery Image One

The camera provides a crystal clear image with a superb dynamic range up to 2000°F (1100°C). You can clearly view extremely high temperatures without whiteout and at the same time still see very low temperature objects, which is ideal for casualty searches.

The Mi-TIC S has an enhanced feature set that includes a laser pointer, electronic compass, and Heat Seeker (hottest spot identifier) and Cold Seeker (coldest spot identifier) technology.

Applications include: Ventilation location selection, search and rescue (fire and non-fire), seat of fire localization, overhaul, size-up, interior structural firefighting, hot spot localization, cold spot localization, directional awareness.

Features and Benefits

Ease of Use

  • Available in 3-button option only
  • User configurable
  • On/Off / NFPA "TI BASIC" button
  • Lightest large screen NFPA 1801 compliant thermal imager at just 1.9lb (870g)

Image Quality

  • 320x240 Resolution; Display size diagonal - 3.5” (90mm)
  • Highest dynamic temperature range up to 2000°F (1100°C)
  • Uninterrupted imaging with Tri-Mode Sensitivity
  • Unmistakable fixed scene colorization
  • Digital spot temperature measurement
  • Dynamic Scene Enhancement

Powered by the Ignis Engine

  • Enhanced image quality
  • Latest sensor technology
  • Class leading battery technology with 5-year warranty

Designed to Meet Your Application

  • Image freeze, image capture and video capture
  • Software customization tool- activate/deactivate desired functionality
  • Compact Truck Charger- space saving smart charger ensures camera is ready to respond

Technical Specifications

Technical Data
Environmental Data
Thermal conditions

The camera has been designed to operate:

Continuously between -20°C (-4°F) and +85°C (185°F) or

At 150°C (300°F) for 15 minutes

At 260°C (500°F) for 5 minutes

Sealing IP67; will withstand immersion in water
Impact The camera will withstand a drop from a height of 2m (6.5ft) onto concrete
Storage It is recommended that, for maximum effective operational life, the storage temperature is kept between -20°C (-4°F) and +40°C (104°F)
Detector
Sensor type Un-cooled Microbolometer
Sensor material Amorphous Silicon (ASi)
Resolution 384 x 288px
Pixel size 17µm
Spectral response 7.5 – 14µm
MDTD (Full camera system sensitivity) 50mK (0.05°C) typical (Minimum Discernible Temperature Difference)
NETD (Sensor sensitivity) <50mK (<0.05°C)
Dynamic range -40°C to 1100°C (-40°F to 2000°F)
Refresh rate 60Hz
Direct Temperature Measurement (DTM) -40°C to 1100°C (-40°F to 2000°F)
Lens
Lens material Germanium Composite
Focal length 1m to infinity, optimized at 4m (3ft to infinity, optimized at 13ft)
Aperture f/1.0
Field of view 50° horizontal, 37.5° vertical, 62°diagonal
Display
Type High-grade, industrial, color TFT active matrix LCD
Size 90mm (3.5")
Pixel format QVGA 320 x 240 (each pixel RGB format; total 230,400 pixels)
Video input Sensor synchronized direct digital drive
Backlight 350 cd/m2
Mechanical Data
Camera dims (H x W x D) 216mm x 110mm x 82mm (8.5" x 4.3" x 3.2")
Camera weight 695g (1.5lb) without battery
870g (1.9lb) with standard battery
Std Battery dims (H x W x D) 87mm x 76mm x 28mm (3.4" x 3.0" x 1.1")
Std Battery weight 175g (6oz)
Charger dims (H x W x D) 167mm x 112mm x 120mm (6.5" x 4.4" x 4.7")
Charger weight 600g (1.3lb)
Main camera body Radel® R-5100 and Santoprene®
LCD window Ultrason® E 2010 HC
LCD bumper Santoprene®
Ge Window collar Radel® R-5100 and Santoprene®
Lens window Germanium (2mm thick) with durable coating
Electrical Data
Power consumption <3 W typical
Start-up time 5 seconds typical
Std Battery type Lithium Iron Phosphate Rechargeable Battery
Std Battery capacity 1800mAh, 6.4V
Std Battery life In excess of 4 hours @ ambient temperature (22°C / 72°F)
Std Battery charge time Less than 4 hours
Std Battery recharge
cycles
Over 2000 cycles
Std Battery charging temp. 5°C to 40°C (41°F to 104°F)
Charger input voltage 11V – 30V DC (12V and 24V vehicle systems)
Charger operating temp. 0°C to 40°C (32°F to 104°F)
Compliance Data
Performance NFPA 1801:2021 Standard on Thermal Imagers for the Fire Service
Safety IEC 62368-1:2014 and related national standards
UL 121201 / CSA C22.2 No. 213:2017 Class I, Div 2
Groups C, D T4; Class II, Div 2 Groups F, G T4
Emissions RFI/EMC EN 55032:2015, Class A
EN 54098:2010
FCC CFR 47 subpart 15b, ICES 003:2017
AUS/NZ 4251.1
Immunity EN 55103-2:2009
Vibration/Shock BS EN 60721-3-2 Class 2M3
RoHS All parts of the system are compliant with EU directive 2011/65/EC
Laser IEC/EN 60825:2014 & 21 CFR 1040.10 & 1040.11 except for deviations pursuant of Laser Notice No. 50, dated June 24, 2007

NFPA 1801:2021 Standard on Thermal Imagers for the Fire Service

All parts of the system are compliant with EU directive 2011/65/EC
