CS-PAPR SD
Short Duration Combination System Powered Air Purifying Respirator
CS-PAPR SD
Short Duration Combination System Powered Air Purifying Respirator

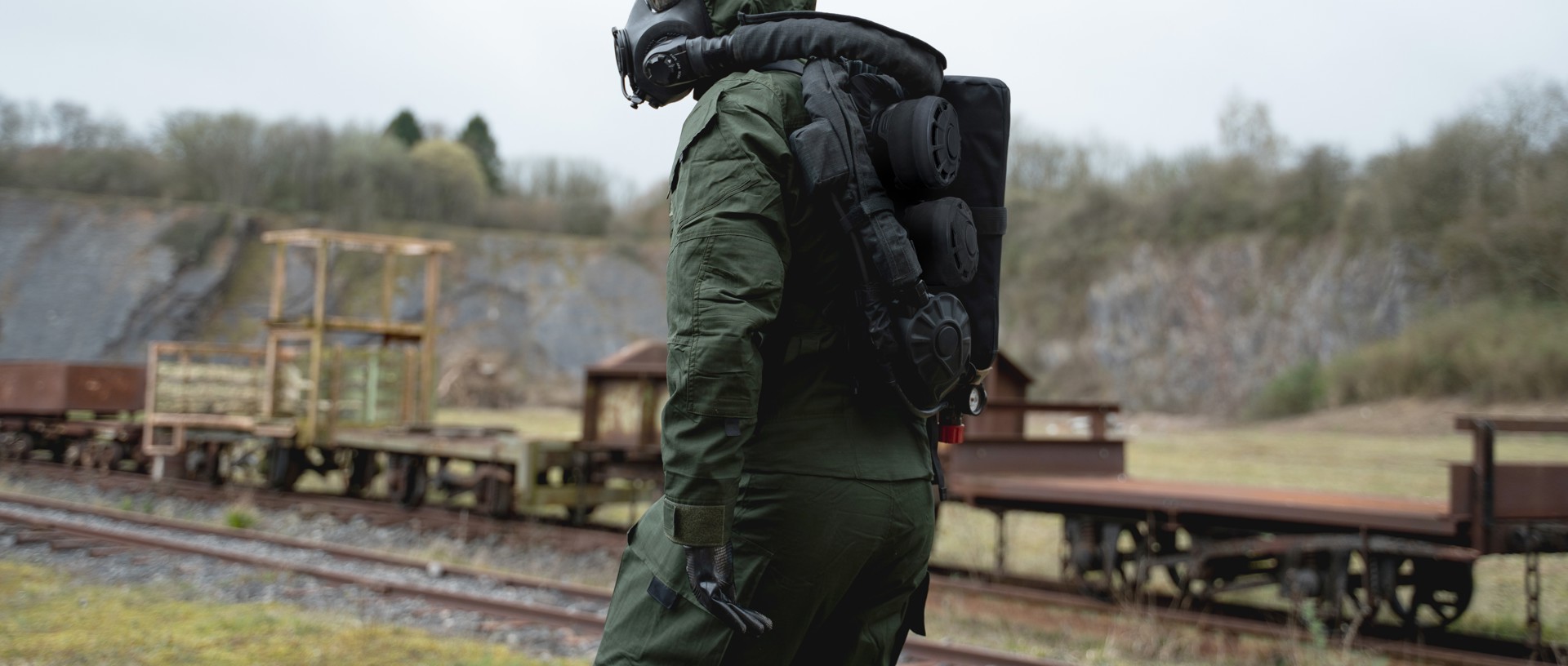

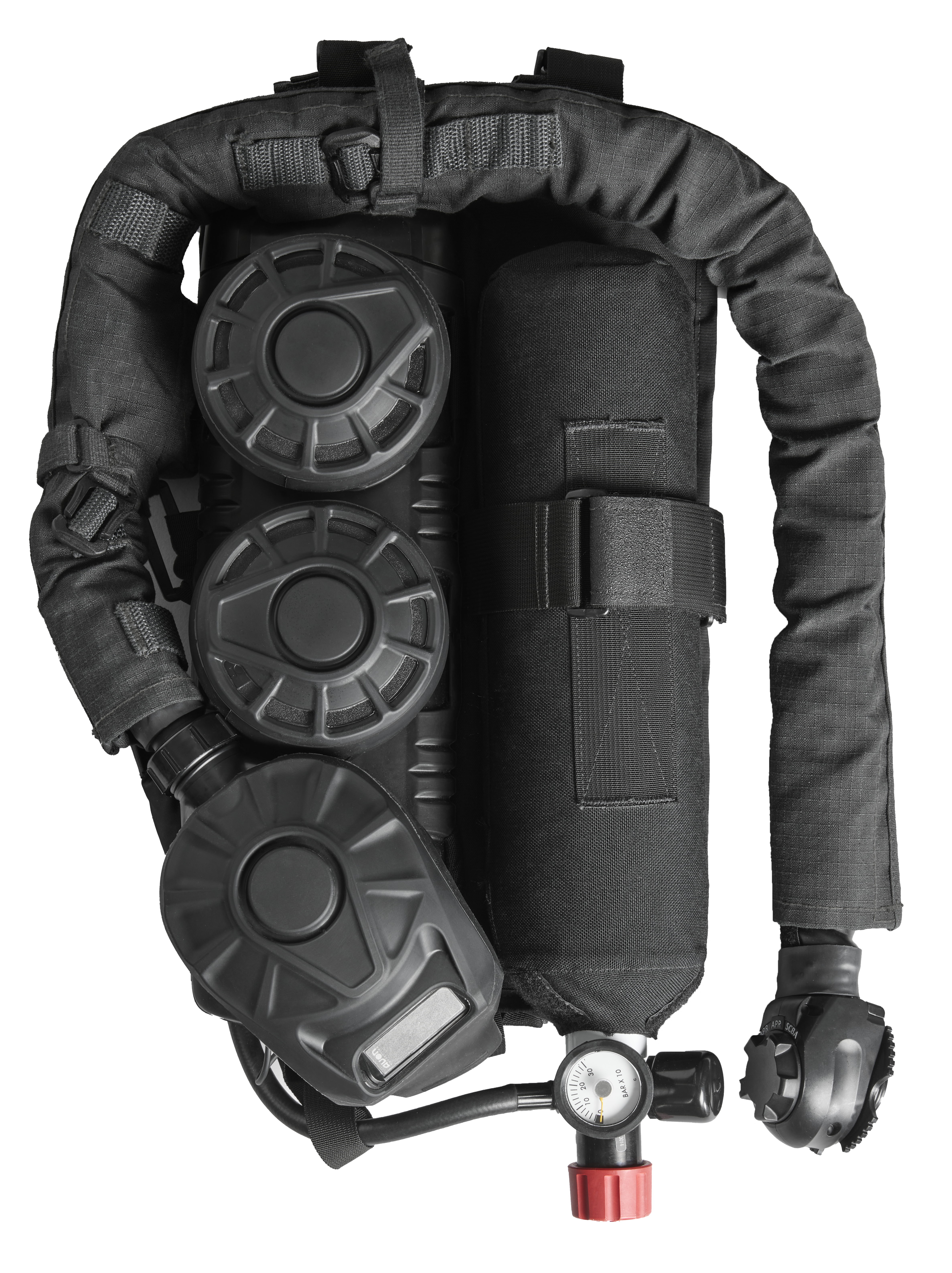

Avon Protection's CS-PAPR SD is a CBRN Combination System Powered Air Purifying Respirator (PAPR) designed for short-duration use, integrated with a Combination Respirator Unit (CRU).
CS-PAPR SD provides military special forces and tactical teams with the capability to switch between breathing protection levels dependent on threat for safer operation for the wearer. CS-PAPR SD has been designed as a smaller, compact lower-profile system for greater operational flexibility to enable users to remain uncompromised on target for up to 20 minutes.
Avon Protection’s patented PAPR technology allows users to seamlessly switch between Air Purifying Respirator (APR), PAPR (Powered Air Purifying Respirator), and the option to transition to short-duration SCBA when operating in high-contaminant or oxygen-deficient environments. A single hose connection across all modes keeps one side of the mask clear, maintaining unobstructed weapon sighting and enhanced situational awareness.
Built around a modular methodology, CS-PAPR SD can be easily added to existing fielded systems, including the FM53/4 APR and ST53 SCBA configurations, allowing users to build on existing equipment investment.
Suitable for:
- Military
- Special Forces
- First Responders
- Navy
CS-PAPR SD provides military special forces and tactical teams with the capability to switch between breathing protection levels dependent on threat for safer operation for the wearer. CS-PAPR SD has been designed as a smaller, compact lower-profile system for greater operational flexibility to enable users to remain uncompromised on target for up to 20 minutes.
Avon Protection’s patented PAPR technology allows users to seamlessly switch between Air Purifying Respirator (APR), PAPR (Powered Air Purifying Respirator), and the option to transition to short-duration SCBA when operating in high-contaminant or oxygen-deficient environments. A single hose connection across all modes keeps one side of the mask clear, maintaining unobstructed weapon sighting and enhanced situational awareness.
Built around a modular methodology, CS-PAPR SD can be easily added to existing fielded systems, including the FM53/4 APR and ST53 SCBA configurations, allowing users to build on existing equipment investment.
Features and Benefits
Intelligent Integration
- Optional carrier module allows wearer to rapidly remove SCBA portion
- Crush resistant ‘S-Shape’ hose with low profile hose end
Auto Filter Covers (Optional)
- Quick fit onto existing Avon MP-PAPR filter mount
- Pneumatically operated by the combination hose
- Easy to view indicator for status updates
- Integrated rubber impact bumper
Operational Flexibility
- Re-configurable to work as Avon Protection's MP-PAPR
- Short duration cylinders integrate with CS-PAPR
Patented Combination Hose
- Press and turn rotary selector prevents accidental actuation
- PAPR automatically powered up/down when selector rotated
- Ability for user to switch modes in one simple action
- ‘Fail-Safe’ pneumatic operation of hose
Comfort
- Ergonomically contoured for comfort
- Adjustable harness allows for quick donning / doffing
Stealth Appearance
- Black low-profile design
- Lighter in weight to traditional SCBA units
- Silent in operation for critical missions
Technical Specifications
|
Unit Size |
470mm L (18.5") x 279mm H (11") x 152mm W (6") |
|
Typical unit weight with 2L |
6.44 kg (14.2 lbs) |
|
Typical unit weight with 3L |
6.94 kg (15.3 lbs) |
|
Flow Rate (PAPR) |
120 lpm controlled flow |
|
Operational Noise @ 120 lpm |
<60 dBa |
|
Run time |
8+ Hours (5200 battery) |
|
Operational Temperature |
-15°C to 45°C (5°F to 113°F) |
|
Protection Factor PAPR mode |
10,000 (PAPR On), 2,000 (PAPR Off) |
|
Protection Factor SCBA Mode |
100,000 |
| Breathing rate (SCBA) |
125lpm with respirator pressure above ambient |
|
Breathing resistance (SCBA) |
Exhalation breathing resistance of no greater than 20mm of water at 85 lpm in a negative pressure mode |
|
Inhalation resistance (SCBA) |
50mm of water at 85 lpm |
|
Operation |
Wearer can select from APR, PAPR and SCBA modes by pushing in and |
|
Interface with APR |
Crush proof hose with close fit 40mm APR connection |
